USTC 101PJ
PJ Thermal Head
Strategic Advantages and Performance Features
Thermal Head Unique Characteristics
  • Internal lowest thermal resistance
  • Heat dissipation rate: 0 to 600W
  • Substantially uniform temperature distribution
    Unlimited scalability, based on application
Thermal Cycles
  • 25,000, basic
  • 50,000, optional
Coolant Pressure (psi)
  • 4 to 60 psi
  • 4 to 9 psi, optimal

Flow Rate (GPM)
  • 0.15 to 2.5
  • 0.3 to 0.5, optimal
Specifications:

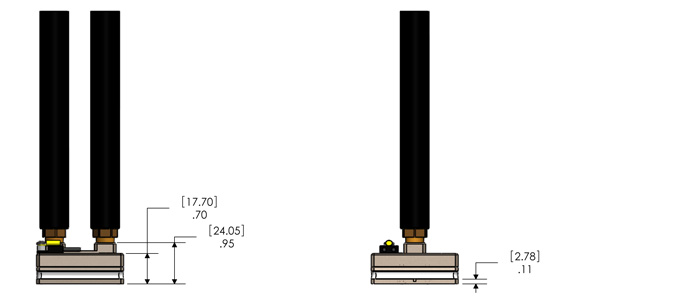

Dimensions (”)

2 (L) x 2 (W)
Dimensions (mm)

53 (L) x 53 (W)
Operating Input Fluid Pressure (PSI)

4 to 57 PSI (2.76 x 104 to 3.93 x 105 Pa)

Operating Input Flow Rate

0.15 to 2.5 GPM (0.57 to 9.46 liter/minute)

Fluid Connector Type

1/4” CPC

Operating Voltage

 24 TO 27VDC

Operating Current

10 to 14A
Made in USA Patented

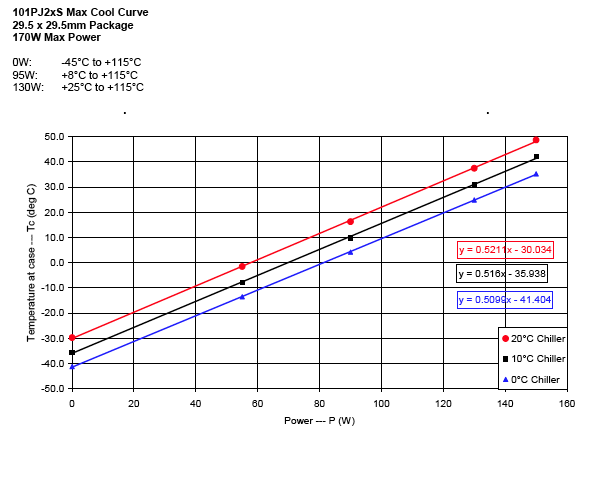

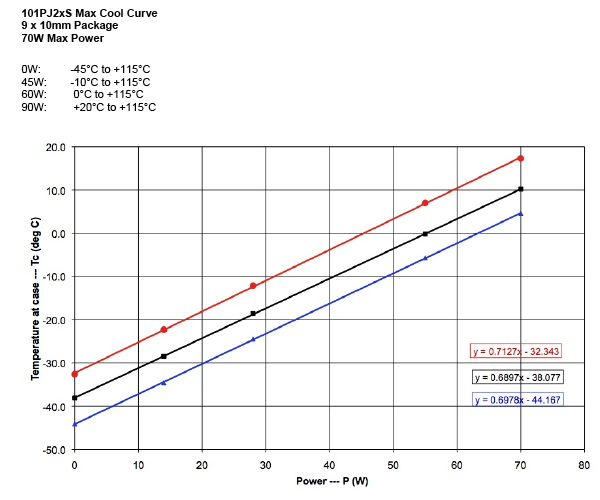

Performance Charts
