USTC 10AI10
  • 50mm x 50mm KOV
  • 45mm x 45mm COMPONENT Footprint
  • Single stage TEM
  • 20 to 30ºC ambient environment
  • 70W power dissipation and temperature range of 49ºC to 90ºC ± 2ºC
  • 35W power dissipation and temperature range of 22ºC to 90ºC ± 2ºC
  • 10W power dissipation and temperature range of 4ºC to 90ºC ± 2ºC
  • Thermal Resistance = 0.6 ºC/W
  • Processor ID: 29.5mm x 29.5mm, 70W processor
  • Patented & Made in USA
USTC 10AI30
  • 50mm x 50mm KOV
  • 45mm x 45mm COMPONENT Footprint
  • Two stage TEM
  • 20 to 30ºC ambient environment
  • 8W power dissipation and temperature range of -5ºC to 118ºC ± 2ºC
  • 5W power dissipation and temperature range of -12ºC to 118ºC ± 2ºC
  • 2W power dissipation and temperature range of -19ºC to 118ºC ± 2ºC
  • Thermal Resistance = 2.0ºC/W
  • Processor ID: 10mm x 10mm, 35W processor
  • Patented & Made in USA

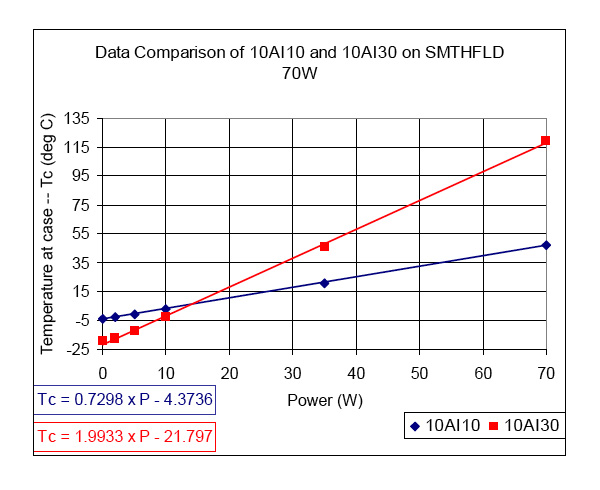

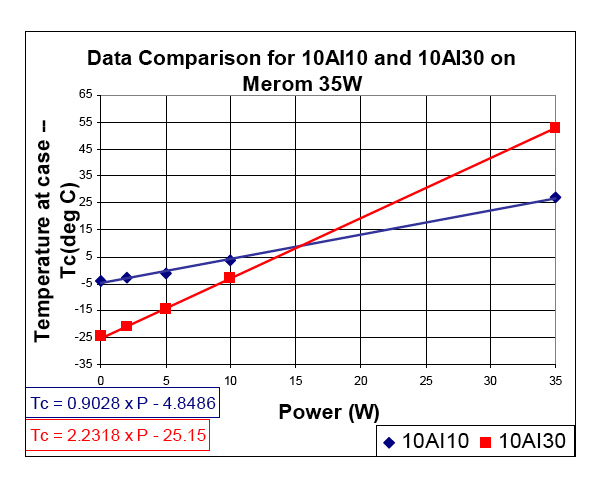

Performance Charts
