| USTC 10AL10 |
- 65mm x 65mm KOV
- 61.4mm x 61.4mm COMPONENT Footprint
- Single stage TEM
- 20 to 30ºC ambient environment
- 60W power dissipation and temperature range of 24ºC to 80ºC ± 2ºC
- 35W power dissipation and temperature range of 14ºC to 80ºC ± 2ºC
- 10W power dissipation and temperature range of 2ºC to 80ºC ± 2ºC
- Thermal Resistance = 0.95ºC/W
- Processor ID: 29.5mm x 29.5mm, 60W processor
- Patented & Made in USA
|
 |
| USTC 10AL60 |
- 65mm x 65mm KOV
- 61.4mm x 61.4mm COMPONENT Footprint
- Two stage TEM
- 20 to 30ºC ambient environment
- 8W power dissipation and temperature range of -10ºC to 118ºC ± 2ºC
- 5W power dissipation and temperature range of -18ºC to 118ºC ± 2ºC
- 2W power dissipation and temperature range of -22ºC to 118ºC ± 2ºC
- Thermal Resistance = 2.01ºC/W
- Processor ID: 10mm x 10mm, 55W processor
- Patented & Made in USA
|
 |
| USTC 10AL61 |
- 65mm x 65mm KOV
- 61.4mm x 61.4mm COMPONENT Footprint
- Two stage TEM
- 20 to 30ºC ambient environment
- 8W power dissipation and temperature range of -3ºC to 76ºC ± 2ºC
- 5W power dissipation and temperature range of -6ºC to 76ºC ± 2ºC
- 2W power dissipation and temperature range of -9ºC to 76ºC ± 2ºC
- Thermal Resistance =0.96ºC/W
- Processor ID: 10mm x 10mm, 55W processor
- Patented & Made in USA
|
|

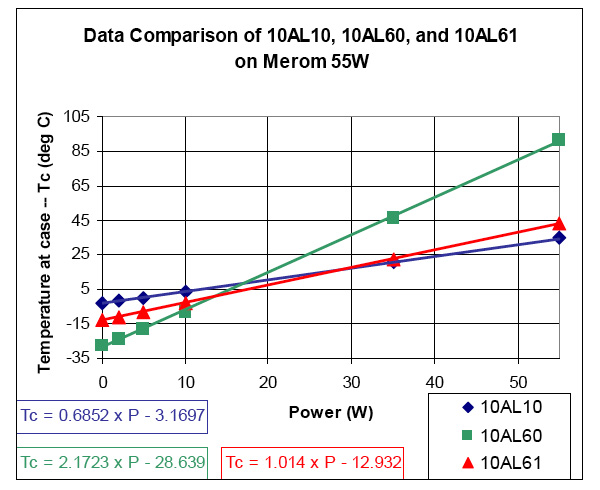

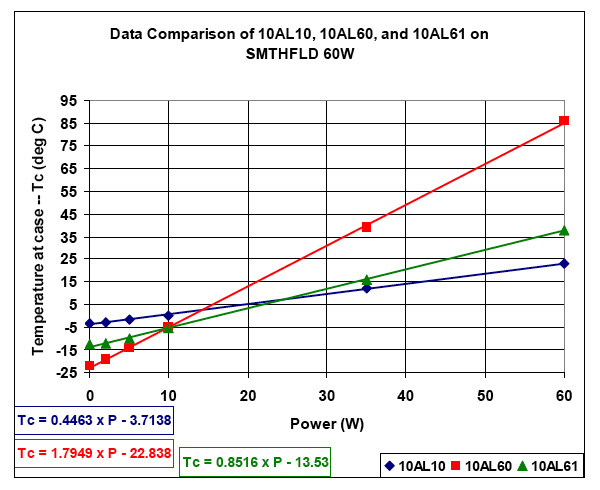

| Performance Charts |
|
|
