Hybrid Air Thermal Management System Overview

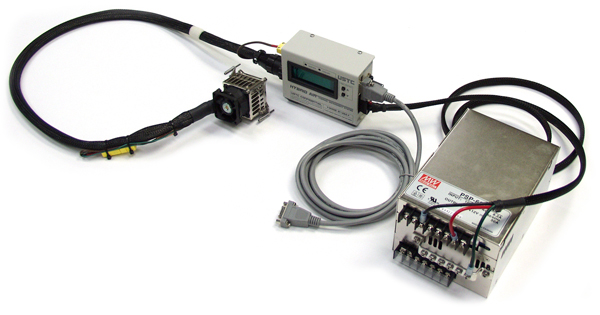

The Hybrid Air Thermal Management (HATMS) is designed to dissipate power on microprocessors using air for cooling. The USTC™ Thermal Head (TH) contains a radiator and a fan for performing this function. The HATMS™ proprietary controller was designed specifically for this system. The small controller enclosure houses the electronics and hardware for communications and power.

Made in USA

---

Specifications

Control Hub Dimensions(")	4.5(L) x 2(W) x 3.58(H)
(mm)	114(L) x 51(W) x 91(H)
Power Supply Dimensions(")	6.69(L) x 4.72(W) x 3.66(H)
(mm)	170(L) x 120(W) x 93(H)
Max Current	10A
Max Voltage	12V
TE Switching Frequency	20khz
Temperature Resolution	0.1°C
Temperature Accuracy	+/- 2°C
Temperature Update Rate	10°C to 100°C
Fuse Rating	10A
RS232 Protocol	MODBUS with register numbers similar to Watlow 96 series
Recommended Ambient Air Temp	20°
