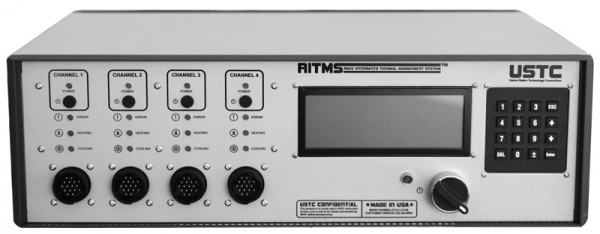

Rack Integrated Thermal Management System Overview

The Rack Integrated Thermal Management System (RITMS) is an advanced thermal management tool sized to fit into a rack or to stand alone on a workstation. The hardware schematic includes a USTC proprietary Controller and a Modular Rack Power Supply System (MRPSS™). The controller has four channels with connectors for one to four USTC Thermal Heads equipped with an onboard converter which communicates with the controller. Because the hardware is modular, the RITMS controller can be positioned for easy access and with visual view of the controls and LCD display. The MRPSS is connected to the Controller by a power cable; this allows flexible set-up in a convenient location close to or at a distance from the Controller. The RITMS can be set-up quickly. Simplified operation coupled with a versatile design makes the RITMS a convenient, easy-to-operate thermal management tool. The RITMS has numerous advantages and unique features.


Strategic Advantages and Performance Features

User Friendly Design

• Automatically configures for different cooling modules (Thermal Heads)


• Integrates with USTC PCS (passive cooling system) for extremely compact, efficient and quiet liquid cooling


• LCD display with easy-to-navigate menu


• Analog voltage output to TH minimizes electromagnetic noise into CPU circuits


• Temperature readings converted from analog to digital signals eliminates electrical noise and provides precise measurements regardless of the umbilical length

High Performance

• Automatically controls output voltage from -30V to +30V


• 110VAC U.S. or 220VAC non-U.S. power input


• Advanced power algorithm automatically distributes up to 900W to USTC Thermal Head combinations


• Propriety USTC controller provides improved dynamic performance


• Reduces power consumption 40% over standard controller hardware systems

Security and Safety

• On-board chip memory stores USTC TH data by serial number


• Three levels of system security eliminates errors in system settings


• Sound and LED alarms for real-time, immediate notifications for action

Made in USA

---

Specifications

Dimensions (”)	10.41 (L) x 17.66 (W) x 5.51 (H)
Dimensions (mm)	264 (L) x 448 (W) x 140 (H)
Weight	12.8 lbs. (5.8 kg)
Power Requirements	AC 110-120 V (50-60 Hz), 1 Ph, 3 A
Thermal Head Configuration	4 channel, “S” Series (2 channel for 3042 RITMS)
Output Voltage Ripple	< 3%
Compatible Fluid Systems	Chiller and USTC PCS
Controller	USTC proprietary design
Deliverable Power	840W, 20A max per channel, 28A max total
Control Panel	LCD display, DC power switch, DC channel power buttons (4), Keypad
Thermal Head Indicators	LED: power, error, heating, cooling
Computer Interfaces	USB (4) RS232 (1) Ethernet 10-100 (1)
Thermal Head Interface	RS485
Set Point Temperature Tolerance	< 1.0°C
MPRSS Interconnect	Cable 48” (1.22 m)
Power Cord	9’ 10” (3 m)
Operational Ambient Temperature	41°F to 95°F (5°C to 35°C)

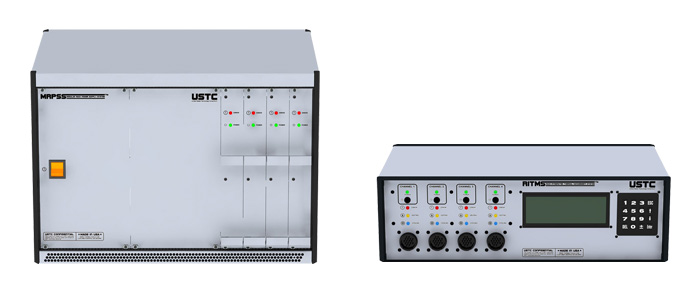

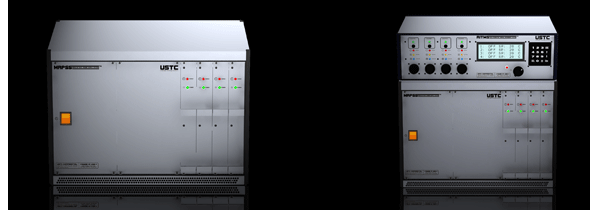

MRPSS™ Modular Rack Integrated Power Supply System

Specifications:

Dimensions (”)	12.41 (L) x 17.64 (W) x 11.21 (H)
Dimensions (mm)	315 (L) x 448 (W) x 285 (H)
Weight	41.4 lbs. (18.78 kg)
Power Requirements	AC 110-120 V (50-60 Hz), 1 Ph, 10 A
Control Panel	AC power switch (1)
Indicators	LED: power, error
Power Cord	9’ 10” (3 m)
Operational Ambient Temperature	41°F to 95°F (5°C to 35°C)
