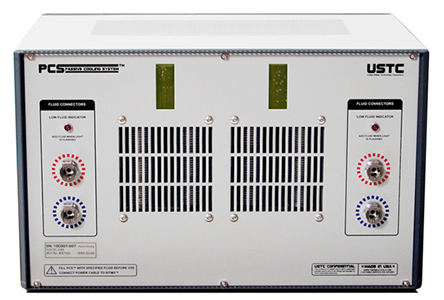

Passive Cooling System OverviewThe USTC Passive Cooling System (PCS) is a compact liquid-air heat exchanger designed to work in conjunction with the RITMS. The PCS has two independent channels to allow for nearly silent delivery of thermal fluid to one or two Thermal Heads simultaneously. The PCS attaches to one-of-two connectors on the back panel of the RITMS which provides power and control. Two PCS units may be attached to the one RITMS.
User Friendly Design
Powers ON automatically through RITMS
Designed for easy fill, refill, and flush of thermal fluid
Front display windows of reservoirs to view fluid level
Two independently plumbed channels
Small, portable design
Low fluid LED warning
Nearly silent operation
Performance
Ideal for hot mode testing
Ideal for low power cold mode testing
Low pressure system
Power Saving Innovations
Efficient cooling design without active refrigeration components
Power supports only fans and pumps
Made in USA
Specifications
Dimensions (”)
12.5 (L) x 17.75 (W) x 10.75 (H) Dimensions (mm)
317.5 (L) x 450.85 (W) x 273.05 (H) Weight
32.5 lbs. (14.8 kg) Power In
9-13.2VDC, 96W Max Thermal Head Configuration
2 channel Compatible Control System
USTC RITMS Front Panel Indicators
Low fluid level LED Max Cooling Performance
2 x 1200W @ 30ºC ΔT (54ºF ΔT) Pump
2.2gpm @ 0psi, 0gpm @ 6.5psi Pump Motor
4 x 18W Reservoir
2 x 0.10 gallons Fluid
Propylene Glycol base Power Cord
5’ (1.5 m) Recommended Ambient Temperature
68ºF (20ºC) Operational Ambient Temperature
32ºF to 95ºF (0ºC to 35ºC) Audible Noise 47dB-A
