USTC 10AJ10
  • 55mm x 55mm KOV
  • 52mm x 52mm COMPONENT Footprint
  • Single stage TEM
  • 20 to 30ºC ambient environment
  • 70W power dissipation and temperature range of 43ºC to 125ºC ± 2ºC
  • 35W power dissipation and temperature range of 18ºC to 114ºC ± 2ºC
  • 10W power dissipation and temperature range of 0ºC to 99ºC ± 2ºC
  • Thermal Resistance = 0.6ºC/W
  • Processor ID: 29.5mm x 29.5mm, 70W processor
  • Patented & Made in USA
USTC 10AJ30
  • 55mm x 55mm KOV
  • 52mm x 52mm COMPONENT Footprint
  • Two stage TEM
  • 20 to 30ºC ambient environment
  • 8W power dissipation and temperature range of -9ºC to 118ºC ± 2ºC
  • 5W power dissipation and temperature range of -16ºC to 118ºC ± 2ºC
  • 2W power dissipation and temperature range of -23ºC to 118ºC ± 2ºC
  • Thermal Resistance = 2.0ºC/W
  • Processor ID: 10mm x 10mm, 35W processor
  • Patented & Made in USA

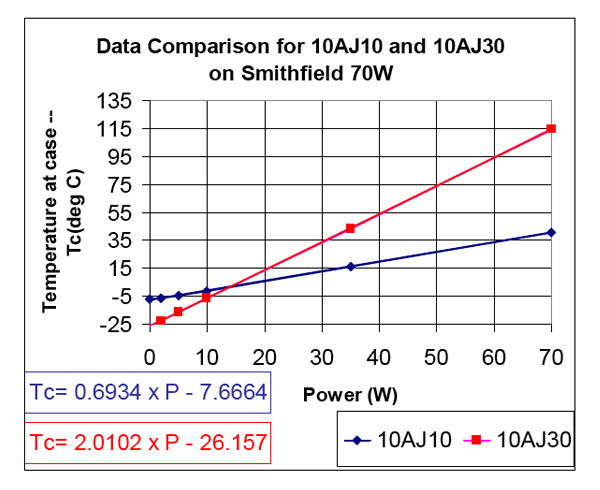

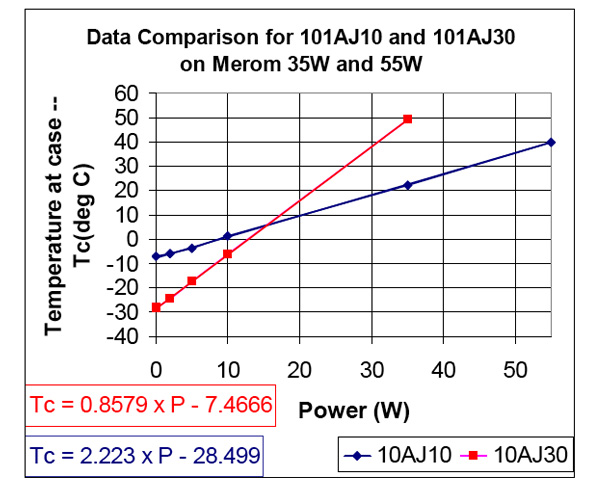

Performance Charts
